| ยี่ห้อXGMA | ใช้ได้จนถึงตลอดชีวิต | อัปเดตล่าสุด2018-11-16 19:42 |
| Operating Weight6.11t | Rated Power58kw | Bucket Capacity0.75-1.5m3 |
| ยอดฮิต67 |

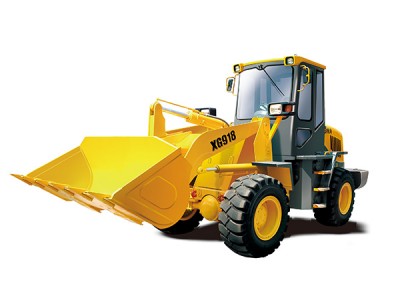

XG918
1. The long wheelbase and reasonable load distribution of the axle brings the machine good stability during travel and operation.
2. The high dumping, big digging force and the auto levelling during material dumping brings high working efficiency.
3. The separate layout of transmission components, the free link function of fuel and hydraulic oil tank, and backward opening of engine hood makes the machine easy to repair.
4. The cabin has professional shock absorption, noise isolation, and split design meets various needs of working site.
5. The optional special bucket, A/C can meet different needs of users.
This is the best choice for users pursuing high reliability and high efficiency.
Operating Weight: 6.11t
Rated Power: 58kw
Bucket Capacity: 0.75-1.5m3
| Description | Unit | XG918 | ||
| Engine | Brand | YTO | ||
| Model | LR4A3-24 | |||
| Type | Four-stroke cycle, water-cooling, in line arrangement, direct-injection | |||
| Rated power | kW | 58 | ||
| Rated speed | rpm | 2400 | ||
| Max. torque | N.m | 275 | ||
| Fuel consumption per hour | g/kW.h | ≤220 | ||
| Performance | Rated load | kg | 1800 | |
| Bucket capacity | m3 | 0.75-1.5 | ||
| Operating weight | t | 6.11 | ||
| Max. gradeability | ° | 30 | ||
| Discharge angle at full lift | ° | 45 | ||
| Dump clearance at full lift | mm | 2630 | ||
| Dumping reach | mm | 850 | ||
| Discharge angle | ° | ≥45 | ||
| Max. breakout force | KN | 6.11 | ||
| Lifting time of lift arm | s | 5 | ||
| Total cycle time | s | ≤9.5 | ||
| Min. turning radius (in carry position) | mm | 5000 | ||
| Overall dimensions(L×W×H) | mm | 5630×2000×2850 | ||
| Travel Speed | Forward | I | km/h | 0-8 |
| II | km/h | 0-20 | ||
| Reverse | I | km/h | 0-8 | |
| II | km/h | 0-20 | ||
