Product Features

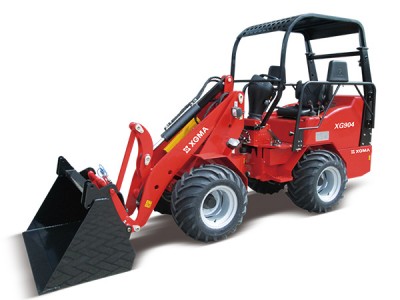

1."The min wheel loader is powered by the Perkins engine, in strict compliance with Euro III emission standards and is eco-friendly.

2.It implements a closed hydrostatic transmission system to minimize energy consumption.

3.An assortment of preemptively designed quick change attachments is at the ready to provide solutions for various job demands.

4.The mini wheel loader is built on uniquely articulated frames to provide durability in various environments."

Specification

Description		Unit	XG902	XG904	XG906	XG908
Engine	Brand		Perkins	Perkins	Perkins	Perkins
	Model		403D-11	403D-15	403D-15T	404D-22
	Rated power	kW	18.5	24.4	29.4	35.7
	Rated speed	rpm	2800	2800	2800	2600
	Max. torque	N.m	67	96	112	143
Performance	Overall length	mm	3810	4330	4330	4800
	Height to top of cabin	mm	2250	2330	2330	2420
	Overall width	mm	943	1330	1330	1375
	Wheelbase	mm	1375	1550	1550	1720
	Min. ground clearance	mm	160	345	345	310
	Track width	mm	728	812	812	912
	Bucket width	mm	918	1370	1370	1370
	Radius at the outer edge	mm	1950	2541	2541	2946
	Max. radius	mm	2354	3037	3037	3435
	Overall working height	mm	3500	3630	3630	3770
	Max. height of bucket pivot	mm	2748	2950	2885	3040
	Max. dumping height	mm	1965	2190	2190	2260
	Dumping reach	mm	440	630	650	554
	Digging depth	mm	90	150	150	60
	Max. inclination angle	°	53	43	43	42
	Backroll angle on ground	°	39	42	42	41
	Departure angle	°	22	22	22	22
	Max. dumping angle	°	40	32	32	42
	Overall length without bucket	mm	3040	3550	3550	3870
Travel Speed	F I	km/h	-	7	7	-
	F II	km/h	12	18	18	20
	R I	km/h	-	7	7	-
	R II	km/h	12	18	18	20
