| ยี่ห้อXGMA | ใช้ได้จนถึงตลอดชีวิต | อัปเดตล่าสุด2018-11-16 19:42 |
| Operating Weight20.4t | Rated Power175kw | Bucket Capacity2.6-5.5m3 |
| ยอดฮิต6 |

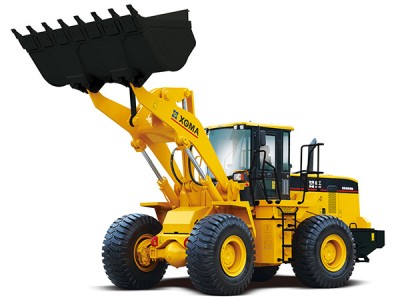

XG962H
Product Features
1. ZF WG200 electrohydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.
2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.
3. Z-type connecting rod features large breakout force and high working efficiency.
4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.
Specification
| Manufacturer | XGMA | |
| Model | XG962H | |
| Overall length(mm) | 8820 | |
| Overall height(mm) | 3465 | |
| Overall width(mm) | 2835 | |
| Wheel base(mm) | 3300 | |
| Ground clearance(mm) | 435 | |
| Tread(mm) | 2240 | |
| Bucket Width (mm) | 3145 | |
| Turn radius(mm) | 6350 | |
| Min.Turn radius outside of bucket (mm) | 7470 | |
| 4225 | ||
| Max. Dumping Height(mm) | 3340 | |
| Dumping Reach(mm) | 1330 | |
| Digging depth(mm) | 60 | |
| Engine model | SC11CB240.1G2B1 | |
| Rated power (kw) | 175 | |
| Fuel comsumption per hour(g/kw.h ) | ≤225 | |
| Rated speed (r/min) | 2200 | |
| Max torque(N.m) | ≥1000 | |
| Operating Weight (Tonnes) | 20.4 | |
| Rated Load(Tonnes) | 6000 | |
| Bucket capacity (m3) | 2.6-5.5 | |
| Lifting time/Lifting, dumping and lowering(s) | 6.5/10.5 | |
| Max Breakout force(KN) | 175 | |
| Max.drawing force (KN) | 173 | |
| Max. turning angle(°) | 35 | |
| Climbing ability(°) | 28 | |
| Fuel tank（L） | 340 | |
| Hydraulic tank（L） | 305 | |
| Working pressure of steering hydraulic system(MPa) | 16 | |
| Working pressure of load hydraulic system(MPa) | 20 | |
| Travel speeds（km/h） | FORWARD 1ST | 0-6.7 |
| FORWARD 2ND | 0-11.8 | |
| FORWARD 3RD | 0-23.5 | |
| FORWARD 4TH | 0-37.6 | |
| REVERSE 1ST | 0-6.7 | |
| REVERSE 2ND | 0-10.6 | |
| REVERSE 3RD | 0-23.5 | |
| Gear Box | ZF | |
| Axle | XG | |
| Distibuting valve | D32 | |
| Steering Hydraulic system | BZZ6-1000 | |
| Tyre size | 23.5-25-20PR | |
| Air Conditioning/Anti-mist when idleing | yes | |
| Heating | yes | |
| Radio/Cassette | yes | |
| Bucket and arm raiseing (limit height) Device | yes | |
| Hydraulic Operation system | yes | |
| Seat Buckle | yes | |
| Head lamp | yes | |
| Reversing Alarm (Back vehicle) | yes | |
| ROPS/FOPS | yes | |
