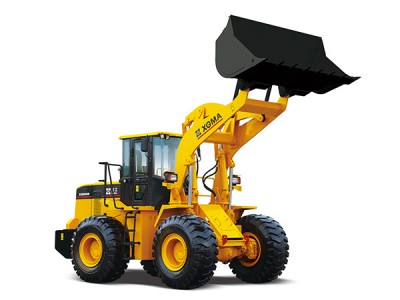

XG954HB
1.High Reliability
Upgraded & enhanced front & back frames
Reinforced counterweight
Fully optimized layout of pipes
Waterproof connectors
Improved painting process
2.High Efficiency and Energy Conservation
Patented dual-pump confluence and diffluence technology
Standard models provide the highest dumping height
Small turning radius
Green, turbocharged, intercooled engine
3.Safety
Complete safety signs
Optional ROPS/FOPS cab
Flame retardant materials and EU-certified glass are used in the cab, offering higher safety
4.Comfortable Operation
Ergonomic design for more comfortable operation
Large space in the H-series cab
The low-noise and shock-absorbing cab
Electronic oil level indicator comes as standard
Optional models with adjustable directions
5.Convenient Maintenance
Leading-out grease fitting is convenient for lubrication
The brake caliper is exposed to facilitate servicing
Central electrical control box for easier servicing
Wide-opening hood for easier servicing & maintenance of engine
Convertible fuel tank
Optimized servicing marks
| Manufacturer | XGMA | |
| Model | XG954HB | |
| Overall length(mm) | 7530 | |
| Overall height(mm) | 3410 | |
| Overall width(mm) | 2880 | |
| Wheel base(mm) | 2760 | |
| Ground clearance(mm) | 500 | |
| Tread(mm) | 2240 | |
| Bucket Width (mm) | 3000 | |
| Turn radius(mm) | 5670 | |
| Min.Turn radius outside of bucket (mm) | 6450 | |
| 4140 | ||
| Max. Dumping Height(mm) | 3140 | |
| Dumping Reach(mm) | 1170 | |
| Digging depth(mm) | 165 | |
| 49 | ||
| Engine model | SC9D220G2B1/WD615 | |
| Rated power (kw) | 162/162 | |
| Fuel comsumption per hour(g/kw.h ) | 220/220 | |
| Rated speed (r/min) | 2200/2200 | |
| Max torque(N.m) | 880/850 | |
| Operating Weight (Tonnes) | 16.8 | |
| Rated Load(Tonnes) | 5 | |
| Bucket capacity (m3) | 3.2 | |
| Lifting time/Lifting, dumping and lowering(s) | 5.8/11 | |
| Max Breakout force(KN) | 170 | |
| Max. turning angle(°) | ±35° | |
| Fuel tank（L） | 220 | |
| Hydraulic tank（L） | 260 | |
| Working pressure of steering hydraulic system(MPa) | 15 | |
| Working pressure of load hydraulic system(MPa) | 16 | |
| Travel speeds（km/h） | FORWARD 1ST | 0～11.5 |
| FORWARD 2ND | 0～38 | |
| FORWARD 3RD | — | |
| FORWARD 4TH | — | |
| REVERSE 1ST | 0～16 | |
| REVERSE 2ND | — | |
| REVERSE 3RD | — | |
| Gear Box | XG | |
| Axle | XG | |
| Implement pump | 209 | |
| Distibuting valve | DF32-D2 | |
| Steering Hydraulic system | BZZ6-1000 | |
| Steering pump | 143 | |
| Tyre size | 23.5-25-16PR | |
| Air Conditioning/Anti-mist when idleing | √ | |
| Heating | √ | |
| Radio/Cassette | √ | |
| Bucket and arm raiseing (limit height) Device | × | |
| Hydraulic Operation system | × | |
| Electricial Monitor and alarm system | √ | |
| Seat Buckle | √ | |
| Head lamp | √ | |
| Reversing Alarm (Back vehicle) | √ | |
