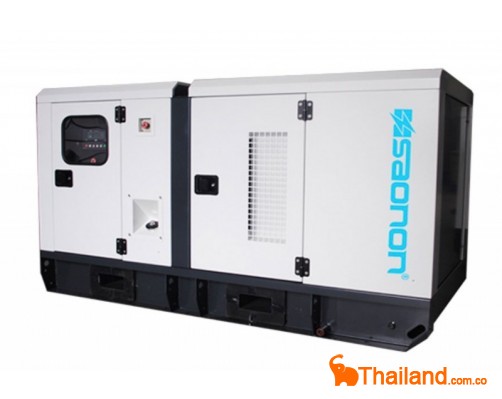

Perkins Silent Genset

Powered by Perkins





Product description:

Reliable and efficient generating set equipped with world-famous Perkins engine, Stamford alternator and the world advanced control panel.







Product features:

Cabinet and base frame are made of high quality slabs and coated with excellent coating material, with three layers of bottom-medium-top spraying process.

base frame is designed with two detachable sections.



High strength base frame material can significantly reduce the vibration during operation.



Marvelous spray coating technology can effectively prevent against rain and noise.



Special sound absorbing material and system can maximally reduce noises to 65 dB (A)/7m.







Power range:

10kVA-625kVA（50Hz、60Hz）







Application scope:



It is suitable for environment with high requirement for noise reduction, such as residential area, high-end office buildings, hotels, scientific research institutes, hospitals, universities and colleges, etc.



Saonon Diesel Gensets Powered by Perkins
50Hz 3Ph 400V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Silent Canopy	kVA	kW	kVA	kW
S10JSPS	10	8	9	7	403A-11G1	LSAP40C	3L	1.1	2.6	5	2200×1033×1304	896
S10JSPS	10	8	9	7	403D-11G	LSAP40C	3L	1.1	2.6	5	2200×1033×1304	896
S14JSPS	14	11	13	10	403D-15G	LSAP40D	3L	1.5	3.67	6	2200×1033×1304	956
S14JSPS	14	11	13	10	403A-15G1	LSAP40D	3L	1.5	3.48	6	2200×1033×1304	956
S22JSPS	22	18	20	16	404D-22G	LSAP40G	4L	2.2	5.3	11	2200×1033×1304	1070
S22JSPS	22	18	20	16	404A-22G1	LSAP40G	4L	2.2	5.3	11	2200×1033×1304	1070
S28JSPS	28	22	25	20	404D-22TG	LSAP42C	4L	2.2	6.7	11	2200×1033×1304	1087
S33EPS	33	26	30	24	1103A-33G	LSAP42D	3L	3.3	7.0	8	2300×1133×1376	1270
S50EPS	50	40	45	36	1103A-33TG1	LSAP43D	3L	3.3	10.6	8	2300×1133×1376	1407
S65EPS	65	52	58	48	1103A-33TG2	LSAP43E	3L	3.3	13.8	8	2300×1133×1376	1434
S73JSPS	73	58	65	52	1104A-44TG1	LSAP43F	4L	4.4	14.8	8	2300×1133×1376	1547
S88JSPS	88	70	80	64	1104A-44TG2	LSAP43F	4L	4.4	18.4	8	2300×1133×1376	1560
S100JSPS	100	80	92	73	1104C-44TAG2	LSAP44C	4L	4.4	20.5	8	2700×1133×1666	1735
S110JSPS	110	88	100	80	1104C-44TAG2	LSAP44D	4L	4.4	24.0	8	2700×1133×1666	1750
S150EPS	150	120	137	110	1006TAG	LSAP44F	6L	6.0	29.0	19	3600×1333×1940	2727
S165JSPS	165	132	150	120	1106A-70TAG2	LSAP44G	6L	7.0	33.2	17	3600×1333×1940	2864
S165EPS	165	132	150	120	1006TAG2	LSAP44G	6L	6.0	41.0	19	3600×1333×1940	2765
S200JSPS	200	160	180	144	1106A-70TAG3	LSA46.2M3	6L	7.0	41.6	17	3600×1333×1940	2904
S200EPS	200	160	180	144	1106C-E66TAG4	LSA46.2M3	6L	6.6	40.0	17	3600×1333×1940	2920
S220JSPS	220	176	200	160	1106A-70TAG4	LSA46.2M5	6L	7.0	45.8	17	3600×1333×1940	2959
S220EPS	220	176	200	160	1306C-E87TAG3	LSA46.2M5	6L	8.7	43.5	27	3600×1333×1940	2982
S250EPS	250	200	225	180	1306C-E87TAG4	LSA46.2L6	6L	8.7	47.6	27	3600×1333×1940	2990
S275EPS	275	220	250	200	1306C-E87TAG6	LSA46.2L6	6L	8.7	45.0	27	3600×1333×1940	3015
S300EPS	300	240	275	220	1606A-E93TAG4	LSA46.2L9	6L	9.3	55.5	36	4100×1490×2000	4250
S330EPS	330	264	300	240	1606A-E93TAG5	LSA46.2VL12	6L	9.3	59.6	36	4100×1490×2000	4290
S400EPS	400	320	350	280	2206C-E13TAG2	LSA47.2VS2	6L	13.0	70.0	40	4500×1583×2200	4724
S450EPS	450	360	400	320	2206C-E13TAG3	LSA47.2S4	6L	13.0	82.7	40	4500×1583×2200	4860
S500EPS	500	400	455	360	2506C-E15TAG1	LSA47.2S5	6L	15.0	95.6	62	4700×1583×2200	5039
S550EPS	550	440	500	400	2506C-E15TAG2	LSA47.2M7	6L	15.0	1.6	62	4700×1583×2200	5166
S660EPS	660	528	600	480	2806C-E18TAG1A	LSA47.2L9	6L	18.0	126.6	62	4700×1983×2200	5993
S700EPS	700	560	650	525	2806C-E18TAG2	LSA49.1S4	6L	18.0	129.3	62	4700×1983×2200	6041
S800EPS	800	660	725	580	4006-23TAG2A	LSA49.1M6	6L	23.0	152.3	113	6058×2438×2591	10370
S880EPS	880	704	800	640	4006-23TAG3A	LSA49.1M75	6L	23.0	171.8	113	6058×2438×2591	10400
S960EPS	960	770	880	704	4008TAG1A	LSA49.1L9	8L	30.6	188.0	153	6058×2438×2591	11667
S1100EPS	1100	880	1000	800	4008TAG2A	LSA49.1L11	8L	30.6	215.2	153	6058×2438×2591	12030
S1375EPS	1375	1100	1250	1000	4012-46TWG2A	LSA50.2M6	12V	46.0	258.1	177	12192×2438×2896	17950
S1500EPS	1500	1200	1350	1080	4012-46TWG3A	LSA50.2L7	12V	46.0	279.1	177	12192×2438×2896	18205
S1650EPS	1650	1320	1500	1200	4012-46TAG2A	LSA50.2L8	12V	46.0	299.0	177	12192×2438×2896	18435
S1875EPS	1875	1500	1710	1368	4012-46TAG3A	LSA51.2S55	12V	46.0	367.3	177	12192×2438×2896	19200
S2000EPS	2000	1600	1825	1460	4016TAG1A	LSA51.2S55	16V	61.0	381.3	237	12192×2438×2896	21780
S2250EPS	2250	1800	2050	1640	4016TAG2A	LSA51.2M60	16V	61.0	434.0	237	12192×2438×2896	21875
S2250EPS	2250	1800	2000	1600	4016-61TRG2	LSA51.2M60	16V	61.0	422.0	237	12192×2438×2896	21875
S2500EPS	2500	2000	2250	1800	4016-61TRG3	LSA51.2VL90	16V	61.0	467.6	237	12192×2438×2896	22900
60Hz 3Ph 480V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Silent Canopy	kVA	kW	kVA	kW
S12JSP6S	12	10	11	9	403D-11G	LSA40VS1	3L	1.1	2.8	5	2200×1033×1304	946
S17JSP6S	17	13	15	12	403D-15G	LSA40VS2	3L	1.5	4.3	6	2200×1033×1304	1006
S26JSP6S	26.5	21	24	19	404D-22G	LSA40M5	4L	2.2	6.2	11	2200×1033×1304	1130
S35JSP6S	35	28	31	25	404D-22TG	LSA42.3VS1	4L	2.2	8.3	11	2200×1033×1304	1154
S37EP6S	37	30	34	27	404D-22TAG	LSA42.3VS2	4L	2.2	8.7	11	2200×1033×1304	1180
S60EP6S	60	47	53	42	1103A-33TG1	LSA42.3M7	3L	3.3	12.4	8	2300×1133×1376	1484
S68EP6S	68	55	62.5	50	1104D-44TG1	LSA42.3M8	4L	4.4	16.3	8	2500×1133×1566	1590
S75EP6S	75	60	68	54	1103A-33TG2	LSA42.3L9	3L	3.3	16.6	8	2300×1133×1376	1484
S80EP6S	80	64	73	58	1104D-E44TG1	LSA42.3L9	4L	4.4	18.7	8	2700×1133×1666	1780
S85EP6S	85	68	77	62	1104A-44TG1	LSA42.3L9	4L	4.4	17.8	8	2300×1133×1376	1553
S100JSP6S	100	80	90	72	1104A-44TG2	LSA43.2L8	4L	4.4	22.9	8	2300×1133×1376	1597
S100EP6S	100	80	90	72	1104D-E44TAG1	LSA43.2L8	4L	4.4	23.7	8	2700×1133×1666	1805
S120EP6S	120	96	109	87	1006TG1A	LSA44.2VS3	6L	6.0	25.8	16	3600×1333×1940	2291
S125JSP6S	125	100	112	90	1104C-44TAG2	LSA44.2VS3	4L	4.4	26.9	8	2700×1133×1666	1805
S125EP6S	125	100	112	90	1104D-E44TAG2	LSA44.2VS3	4L	4.4	27.8	8	2700×1133×1666	1805
S132EP6S	132	106	120	96	1006TG2A	LSA44.2VS45	6L	6.0	25.5	16	3600×1333×1940	2750
S166EP6S	166	133	151	121	1006TAG	LSA44.2S7	6L	6.0	36.0	19	3600×1333×1940	2805
S175EP6S	175	140	159	127	1106D-E66TAG2	LSA44.2S75	6L	6.6	37.6	17	3600×1333×1940	2820
S186EP6S	186	149	168	134	1106D-E66TAG3	LSA44.2S75	6L	6.6	40.0	17	3600×1333×1940	2845
S186EP6S	186	149	168	134	1106C-E66TAG3	LSA44.2S75	6L	6.6	38.9	17	3600×1333×1940	2845
S220EP6S	220	176	200	160	1106D-E66TAG4	LSA44.2 L12	6L	6.6	46.2	17	3600×1333×1940	2914
S220EP6S	220	176	200	160	1106C-E66TAG4	LSA44.2 L12	6L	6.6	39.7	17	3600×1333×1940	2950
S250EP6S	250	200	228	182	1306C-E87TAG3	LSA46.2M3	6L	8.7	49.3	27	3600×1333×1940	2910
S270EP6S	270	216	245	196	1306C-E87TAG4	LSA46.2M5	6L	8.7	52.6	27	3600×1333×1940	3032
S350EP6S	350	280	318	255	1606A-E93TAG4	LSA46.2L9	6L	9.3	67.8	36	4100×1490×2000	4300
S440EP6S	440	352	400	320	2206A-E13TAG5	LSA47.2VS2	6L	12.5	90.3	40	4500×1583×2200	4774
S440EP6S	440	352	400	320	2206D-E13TAG2	LSA47.2VS2	6L	12.5	90.3	40	4500×1583×2200	4774
S500EP6S	500	400	456	365	2206D-E13TAG3	LSA47.2VS2	6L	12.5	94.0	40	4500×1583×2200	4800
S550EP6S	550	440	500	400	2506D-E15TAG1	LSA47.2S4	6L	15.2	97.8	62	4700×1583×2200	5089
S575EP6S	575	460	512	410	2506A-E15TAG3	LSA47.2S4	6L	15.2	97.0	62	4700×1583×2200	5100
S640EP6S	641	513	585	468	2506A-E15TAG4	LSA47.2M7	6L	15.2	113.0	62	4700×1583×2200	5216
S688EP6S	688	550	625	500	2806A-E18TAG1A	LSA47.2M7	6L	18.1	121.6	62	4700×1983×2200	5911
S750EP6S	750	600	690	552	2806A-E18TAG3	LSA47.2M8	6L	18.1	139.7	62	4700×1983×2200	5960
S825EP6S	825	660	750	600	4006-23TAG2A	LSA47.2L9	6L	23.0	173.4	113	6058×2438×2591	10172
S940EP6S	941	753	846	677	4006-23TAG3A	LSA49.1M6	6L	23.0	196.6	113	6058×2438×2591	10420
S980EP6S	980	784	892	714	4008TAG1	LSA49.1M75	8L	30.6	210.5	166	6058×2438×2591	11517
S1100EEP6S	1100	880	1000	800	4008TAG2	LSA49.1L9	8L	30.6	213.0	166	6058×2438×2591	11717
S1375EP6S	1375	1100	1250	1000	4012-46TWG2A	LSA50.2S4	12V	46.0	261.8	177	12192×2438×2896	17800
S1500EP6S	1500	1200	1368	1094	4012-46TWG3A	LSA50.2M6	12V	46.0	287.7	177	12192×2438×2896	18000
S1655EP6S	1655	1324	1506	1205	4012-46TAG2A	LSA50.2M6	12V	46.0	313.9	177	12192×2438×2896	18100
S1880EP6S	1880	1505	1713	1370	4012-46TAG3A	LSA50.2L8	12V	46.0	356.0	177	12192×2438×2896	18485



Notice:

We reserves the right to make changes in model,technical specification,color,configuration and accessories without prior notice.Please contact your sales team

before ordering.
