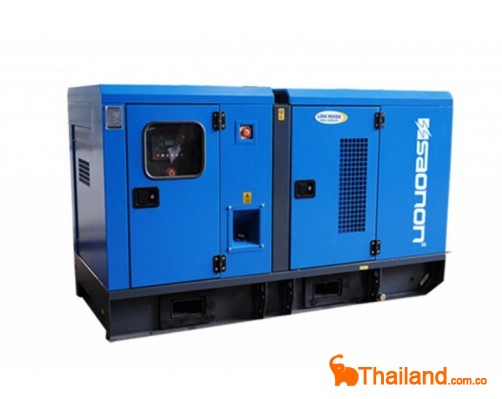

Cummins Silent Genset

Slient Gensets



Powered by Cummins



Product description:



Reliable and efficient generating set equipped with world-famous Cummins engine, Stamford alternator and the world advanced control panel.







Product features:



base frame is designed with two detachable sections.



High strength base frame material can significantly reduce the vibration during operation.



Marvelous spray coating technology can effectively prevent against rain and noise.



Special sound absorbing material and system can maximally reduce noises to 65 dB (A)/7m.







Power range:



20 kVA -625kVA(50Hz、60Hz)







Application scope:



It is suitable for environment with high requirement for noise reduction, such as residential area, high-end office buildings, hotels, scientific research institutes, hospitals, universities and colleges, etc.



Saonon Diesel Gensets Powered by Cummins
50Hz 3Ph 400V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Silent Canopy	kVA	kW	kVA	kW
S27HCS	27	22	25	20	4B3.9-G2	PI144E	4L	3.9	6.5	11	2350×1133×1516	1380
S40HCS	40	32	35	28	4BT3.9-G2	PI144H	4L	3.9	8.6	11	2350×1133×1516	1420
S55HCS	55	44	50	40	4BTA3.9-G2	UCI224D	4L	3.9	11.0	11	2350×1133×1516	1530
S65HCS	66	53	60	48	4BTA3.9-G2	UCI224E	4L	3.9	12.9	11	2350×1133×1516	1540
S96HCS	96	77	87	70	6BT5.9-G2	UCI224G	6L	5.9	19.0	16	3200×1133×1766	2037
S110HCS	110	88	100	80	6BT5.9-G2	UCI274C	6L	5.9	22.3	16	3200×1133×1766	2059
S125HCS	125	100	114	91	6BTA5.9-G2	UCI274D	6L	5.9	27.0	16	3200×1133×1766	2130
S148HCS	148	118	135	108	6BTAA5.9-G2	UCI274E	6L	5.9	30.0	16	3200×1133×1766	2168
S175HCS	175	140	160	128	6CTA8.3-G2	UCI274F	6L	8.3	35.7	24	3600×1333×1940	3040
S200HCS	200	160	182	145	6CTA8.3-G2	UCI274G	6L	8.3	41.0	24	3600×1333×1940	3100
S220HCS	220	176	200	160	6CTAA8.3-G2	UCI274H	6L	8.3	42.1	24	3600×1333×1940	3040
S250HCS	250	200	225	180	6LTAA8.9-G2	UCDI274J	6L	8.9	46.8	24	3600×1333×1940	3380
S275HCS	275	220	250	200	6LTAA8.9-G2	UCDI274K	6L	8.9	52.0	24	3600×1333×1940	3400
S250CCS	250	200	225	180	NT855-GA	UCDI274J	6L	14.0	51.3	39	4300×1483×2145	4200
S275CCS	275	220	250	200	NT855-GA	UCDI274K	6L	14.0	53.0	39	4300×1483×2145	4250
S275CCS	275	220	250	200	MTA11-G2A	UCDI274K	6L	11.0	61.0	39	4300×1483×2145	4123
S325CCS	325	260	300	240	NTA855-G1A	HCI444D	6L	14.0	61	39	4300×1483×2145	4450
S350CCS	350	280	320	256	NTA855-G1B	HCI444ES	6L	14.0	71.0	39	4300×1483×2145	4495
S350CCS	350	280	320	256	MTAA11-G3	HCI444ES	6L	11.0	71	39	4500×1583×2100	4887
S385CCS	385	310	350	280	NTA855-G2A	HCI444E	6L	14.0	72	39	4300×1483×2145	4495
S385CCS	385	310	350	280	NTA855-G4	HCI444E	6L	14.0	75	39	4300×1483×2145	4495
S413CCS	413	330	375	300	NTAA855-G7	HCI444F	6L	14.0	85	39	4500×1583×2100	5327
S450CCS	450	360	400	320	NTAA855-G7A	HCI444F	6L	14.0	87	39	4500×1583×2100	5360
S500HCS	500	400	450	360	QSZ13-G2	HCI544C	6L	13.0	89	45	5000×1983×2371	6450
S500CCS	500	400	450	360	KTA19-G3	HCI544C	6L	18.9	92	50	4800×1683×2200	6500
S550HCS	550	440	500	400	QSZ13-G3	HCI544D	6L	13.0	92	45	5000×1983×2371	6510
S550CCS	550	440	500	400	KTA19-G3A	HCI544D	6L	18.9	95	50	4800×1683×2200	6630
S550CCS	550	440	500	400	KTA19-G4	HCI544D	6L	18.9	97	50	4800×1683×2200	6630
S600CCS	600	480	550	440	KTAA19-G5	HCI544E	6L	18.9	113	50	5000×1983×2371	6650
S660CCS	660	528	600	480	KTA19-G8	HCI544E	6L	18.9	126	50	4800×1683×2200	6800
S688CCS	688	550	625	500	KTAA19-G6A	HCI544FS	6L	18.9	128	50	5000×1983×2371	6700
S715CCS	715	572	650	520	QSKTAA19-G3 NR2	HCI544F	6L	18.9	143	84	5000×1983×2371	9000
S800CCS	800	640	728	582	KT38-GA	LVI634B	12V	37.8	225	135	6058×2438×2896	11985
S825CCS	825	660	750	600	KTA38-G2	LVI634B	12V	37.8	204	135	6058×2438×2896	12200
S880CCS	880	704	800	640	KTA38-G2B	HCI634H	12V	37.8	207	135	6058×2438×2896	12350
S1000CCS	1000	800	910	728	KTA38-G2A	HCI634H	12V	37.8	211	135	6058×2438×2896	12450
S1100CCS	1100	880	1000	800	KTA38-G5	HCI634J	12V	37.8	220	135	6058×2438×2896	12510
S1250CCS	1250	1000	1138	910	KTA38-G9	LVI634G	12V	37.8	230	135	6058×2438×2896	13417
S1375CCS	1375	1100	1250	1000	QSK38-G5	HCI634K	12V	37.8	274	170	12192×2438×2896	15800
S1375CCS	1375	1100	1250	1000	KTA50-G3	LVI 634G	16V	50.0	254	177	12192×2438×2896	16850
S1540CCS	1540	1232	1400	1120	KTA50-G8	PI734B	16V	50.0	289	204	12192×2438×2896	18322
S1650CCS	1650	1320	1500	1200	KTA50-GS8	PI734C	16V	50.0	309	204	12192×2438×2896	18500
60Hz 3Ph 480V Pf0.8
Genset Model	Power Rating ESP		Power Rating PRP		Engine Model	Alternator Model	Cylinders	Displacement (L)	Fuel Consumption of Full Load (L/H)	Lube Capacity (L)	Dimension L×W×H（mm)	Weight (kg)
Silent Canopy	kVA	kW	kVA	kW
S33HC6S	33	27	30	24	4B3.9-G2	PI144E	4L	3.9	8.6	11	2350×1133×1516	1390
S40HC6S	41	33	37.5	30	4BT3.9-G2	PI144G	4L	3.9	10.0	11	2350×1133×1516	1420
S70HC6S	70	56	62	50	4BTA3.9-G2	UCI224D	4L	3.9	15.4	11	2350×1133×1516	1540
S100HC6S	103	83	94	75	6BT5.9-G2	UCI224F	6L	5.9	23.5	16	3200×1133×1766	2001
S125HC6S	125	100	114	91	6BT5.9-G2	UCI274C	6L	5.9	26.0	16	3200×1133×1766	2059
S145HC6S	145	116	131	105	6BTA5.9-G2	UCI274D	6L	5.9	29.7	16	3200×1133×1766	2090
S165HC6S	165	132	150	120	6BTAA5.9-G2	UCI274E	6L	5.9	34.0	16	3200×1133×1766	2178
S210HC6S	210	167	190	152	6CTA8.3-G2	UCI274F	6L	8.3	44.0	24	3600×1333×1940	3050
S240HC6S	240	192	220	175	6CTAA8.3-G2	UCI274G	6L	8.3	49.0	24	3600×1333×1940	3204
S300HC6S	300	240	273	218	6LTAA8.9-G2	UCDI274J	6L	8.9	58.5	24	3600×1333×1940	3390
S275CC6S	275	220	250	200	NT855-GA	UCI274H	6L	14.0	60.4	39	4300×1483×2145	4120
S350CC6S	350	280	320	256	NTA855-G1	HCI444D	6L	14.0	70.1	39	4300×1483×2145	4470
S350CC6S	350	280	320	256	NTA855-G1B	HCI444D	6L	14.0	70.5	39	4300×1483×2145	4470
S440CC6S	440	352	400	320	NTA855-G3	HCI444E	6L	14.0	85.1	39	4300×1483×2145	4515
S500CC6S	500	400	438	350	KTA19-G2	HCI444FS	6L	18.9	95.8	50	4800×1683×2200	6440
S550CC6S	550	440	500	400	KTA19-G3	HCI544C	6L	18.9	103.5	50	4800×1683×2200	6520
S620CC6S	620	496	565	450	KTA19-G4	HCI544C	6L	18.9	117	50	4800×1683×2200	6600
S688CC6S	688	550	588	470	KTAA19-G5	HCI544D	6L	18.9	134	50	5000×1983×2371	6720
S750CC6S	750	600	682	546	KTAA19-G6A	HCI544E	6L	18.9	142	50	5000×1983×2371	6800
S850CC6S	850	680	775	620	KT38-G	HCI544F	12V	37.8	147.4	135	6058×2438×2896	11667
S1000CC6S	1000	800	906	725	KTA38-G2	HCI634G	12V	37.8	195	135	6058×2438×2896	11947
S1100CC6S	1100	880	1000	800	KTA38-G2A	LVI634C	12V	37.8	210	135	6058×2438×2896	12834
S1250CC6S	1250	1000	1125	900	KTA38-G4	HCI634H	12V	37.8	229.5	135	6058×2438×2896	13170
S1540CC6S	1540	1232	1400	1120	KTA50-G3	HCI634K	16V	50.0	281.5	177	12192×2438×2896	17020
S1720CC6S	1732	1386	1575	1260	KTA50-G9	PI734B	16V	50.0	313.2	204	12192×2438×2896	18200

Notice:

We reserves the right to make changes in model,technical specification,color,configuration and accessories without prior notice.Please contact your sales team

before ordering.
